Honda CB500X

Last updated on Jun 03, 2022 in Bikes & Scooters

Honda CB500X Latest Update

We’ve ridden the CB500X and it’s safe to say we were thoroughly impressed by it. But we did encounter a few problems with it too. Head here for details.

 Honda launched its first mid-displacement adventure tourer in the country, the 2021 Honda CB500X, at Rs 6,87,386 ex-showroom in May 2021. After a price reduction of Rs 1,08,036, the motorcycle now retails at Rs 5,79,952. Check out the latest price list of all Honda two-wheelers here.

 Honda CB500X Price:

The Honda CB500X BS6 is priced at Rs 5,79,952 (ex-showroom, Gurugram). The CB500X is available in two colours: red and black.

 Honda CB500X Features:

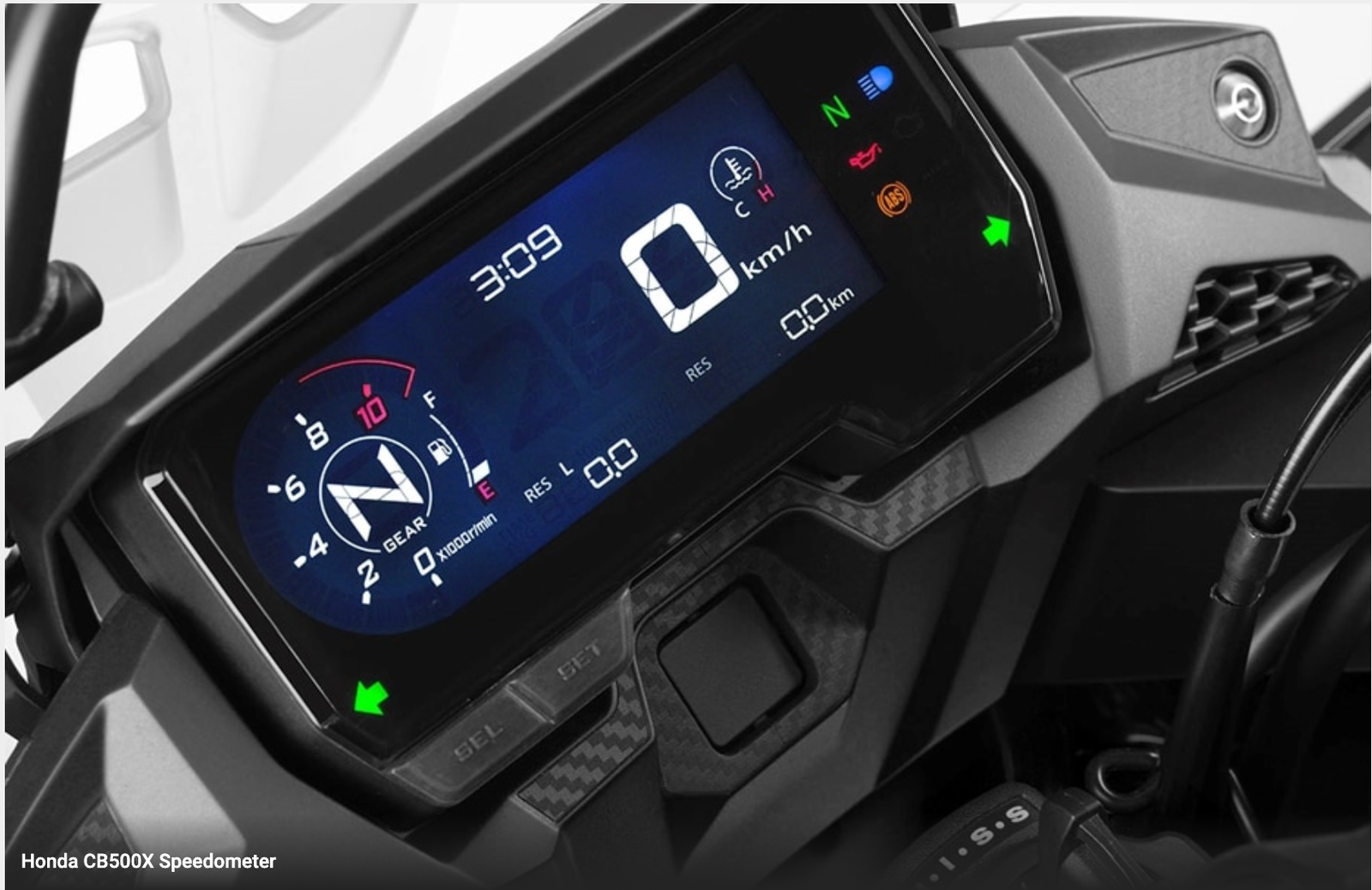

The Honda CB500X is sleek and compact, making it less intimidating than other ADVs in the market. It features a front beak like most ADVs, LED lighting all around, a full-digital instrument console with gear position and gear shift-up indicator, a tall windscreen, and dual-channel ABS. Also worth mentioning is Honda's smart ESS (Emergency Stop Signal) system which detects sudden braking and automatically activates the hazard lights. Besides, the bike also comes equipped with the Honda Ignition Security System (HISS) that automatically disables the starting of the engine by means of electronic control.

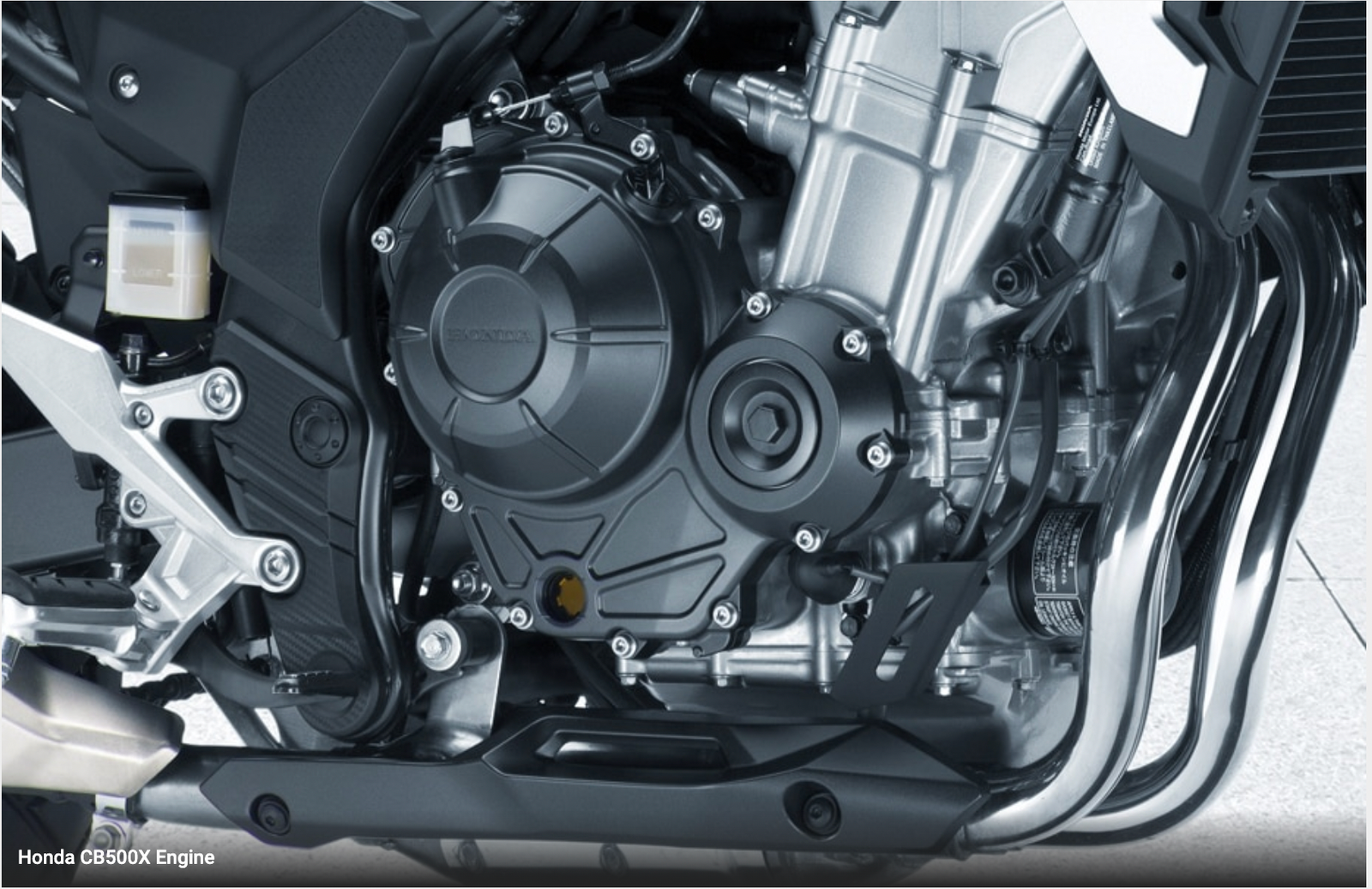

 Honda CB500X Engine:

The CB500X is powered by a BS6-compliant 471cc liquid-cooled parallel-twin motor that makes a leisurely 47PS and 43Nm of torque, mated to a 6-speed transmission. The gearbox even gets a slip-and-assist clutch. While the engine performance sounds a bit dull, it's the character of the motor that'll keep you engaged. The motor puts down its power in a linear and stress-free manner -- ideal for touring.

 Honda CB500X Suspension & Brakes:

The bike’s hardware comprises a long-travel telescopic fork adjustable for preload and a 9-step preload-adjustable mono-shock. It's 19- and 17-inch front and rear cast aluminium alloy wheels come wrapped with 110- and 160-section tyres. Braking is via a single 310mm front and a 240mm rear petal disc brake. It gets a generous 17.5-litre fuel tank and a seat height of 830mm.

 Honda CB500X Rivals:

The CB500X competes against the Kawasaki Versys 650 and the Benelli TRK 502. You could also take a look at the KTM 390 Adventure which offers pretty much the same performance at a much more affordable price point.



Honda CB500X Specifications

Mileage

-

Displacement

471.03 cc

Engine Type

4 Stroke, SI Engine (Parallel Twin)

No. of Cylinders

2

Max Power

47.5 PS @ 8500 rpm

Max Torque

43.2 Nm @ 6500 rpm

Front Brake

Disc

Rear Brake

Disc

Fuel Capacity

17.7 L

Body Type

Adventure Tourer Bikes, Off Road Bikes



Honda CB500X Features

ABS

Dual Channel

Adjustable Windshield

Yes

LED Tail Light

Yes

Speedometer

Digital

Odometer

Digital

Tripmeter

Digital

Fuel gauge

Yes

Tachometer

Digital



Engine and Transmission



Engine Type

4 Stroke, SI Engine (Parallel Twin)

Displacement

471.03 cc

Max Torque

43.2 Nm @ 6500 rpm

No. of Cylinders

2

Cooling System

Liquid Cooled

Valve Per Cylinder

4

Starting

Self Start Only

Fuel Supply

Fuel Injection

Clutch

Multiplate Wet Clutch

Ignition

Computer-Controlled Digital Transistorized With Electronic Advance

Gear Box

6 speed

Bore

67 mm

Stroke

66.8 mm

Compression Ratio

10.7:1

Emission Type

bs6



Features



Speedometer

Digital

Techometer

Digital

Tripmeter

Digital

Odometer

Digital

Additional Features Of Variant

Emergency Stop Signal, Honda Ignition Security System

Seat Type

Single

Body Graphics

Yes

Clock

Digital

Passenger Footrest

Yes



Features and Safety



Pass Switch

Yes

Clock

Digital

Adjustable Windscreen

Yes

Additional Features

Emergency Stop Signal, Honda Ignition Security System

Passenger Footrest

Yes

Display

Yes



Chassis and Suspension



Body Type

Adventure Tourer Bikes, Off Road Bikes

Body Graphics

Yes

Dimensions and Capacity



Width

828 mm

Length

2156 mm

Height

1412 mm

Fuel Capacity

17.7 L

Saddle Height

830 mm

Ground Clearance

181 mm

Wheelbase

1443 mm

Kerb Weight

199 kg



Electricals



Headlight

LED

Tail Light

LED

Turn Signal Lamp

LED

LED Tail Lights

Yes

Tyres and Brakes



Front Brake Diameter

310 mm

Rear Brake Diameter

240 mm





Motor & Battery



Peak Power

47.5 PS @ 8500 rpm

Drive Type

Chain Drive

Battery Capacity

12 V / 7 Ah

Transmission

Manual





Charging



Charging At Home

No

Charging At Charging Station

No





Underpinnings



Suspension Front

Telescopic Suspension

Suspension Rear

Honda ProLINK monoshock

Brakes Front

Disc

Brakes Rear

Disc

ABS

Dual Channel

Tyre Size

Front :-110/80-19 Rear :-160/60-17

Wheel Size

Front :-482.6 mm,Rear :-431.8 mm

Wheels Type

Alloy

Frame

Steel Tube Type

Tubeless Tyre

Tubeless
