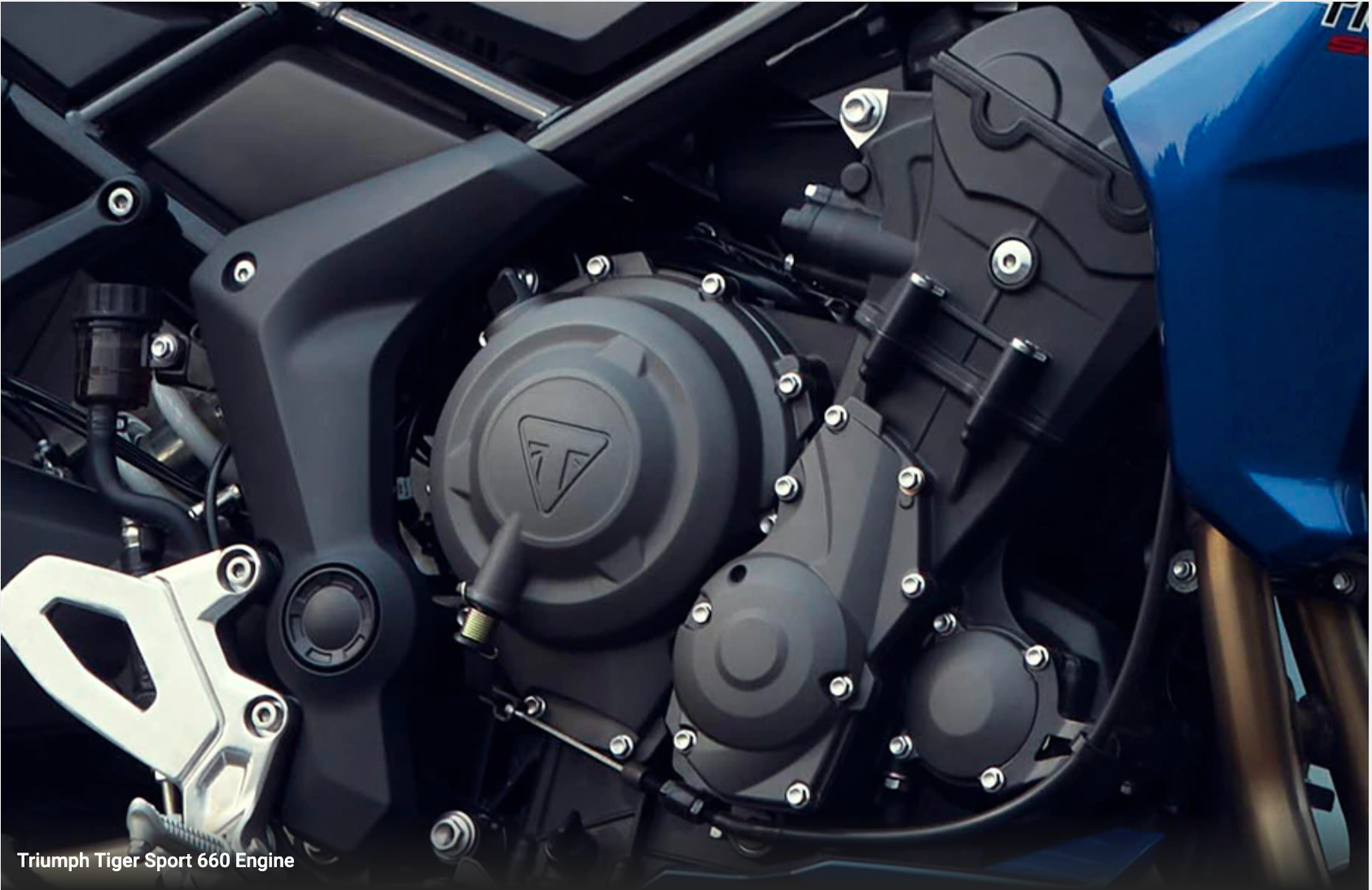

Engine Type
|
Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
|
|
Displacement
|
660 cc
|
|
Max Torque
|
64 Nm @ 6250 rpm
|
|
Cooling System
|
Liquid Cooled
|
|
Valve Per Cylinder
|
4
|
|
Starting
|
Self Start Only
|
|
Fuel Supply
|
Fuel Injection
|
|
Clutch
|
Wet, multi-plate, slip &assist
|
|
Gear Box
|
6 Speed
|
|
Bore
|
74.0 mm`
|
|
Stroke
|
51.1 mm
|
|
Compression Ratio
|
11.95:1
|
|
Emission Type
|
bs6
|
| |
|
| Features |
|
|

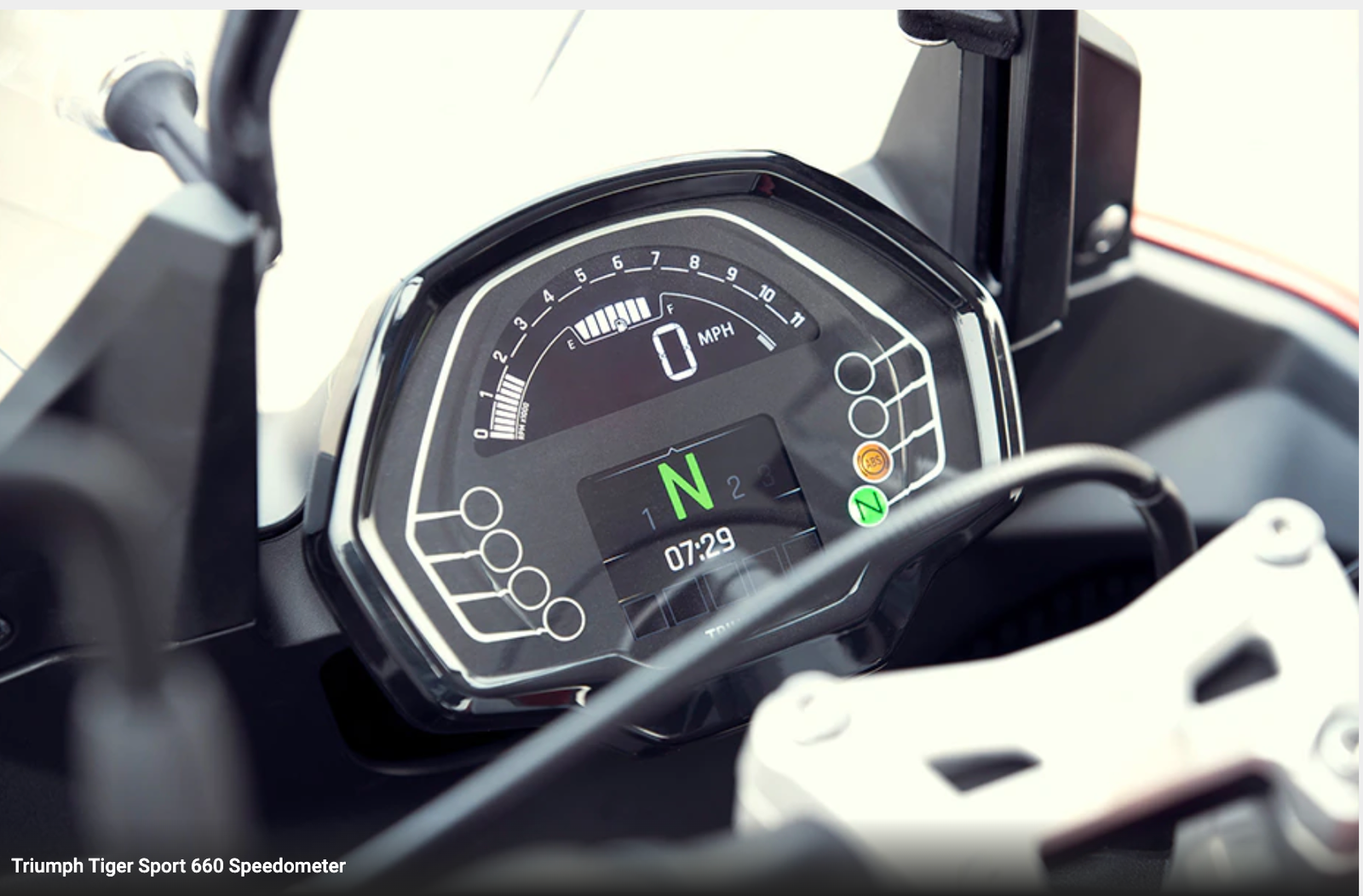

Speedometer
|
Digital
|
|
Techometer
|
Digital
|
|
Tripmeter
|
Digital
|
|
Odometer
|
Digital
|
|
Seat Type
|
Split
|
|
Clock
|
Digital
|
|
Passenger Footrest
|
Yes
|
| |
|
| Features and Safety |
|
|
Pass Switch
|
Yes
|
|
Clock
|
Digital
|
|
Riding Modes
|
Yes
|
|
Traction Control
|
Yes
|
|
Passenger Footrest
|
Yes
|
|
Engine Kill Switch
|
Yes
|
|
Display
|
TFT screen
|
| |
|
| Chassis and Suspension |
|
|
Body Type
|
Adventure Tourer Bikes
|
Dimensions and Capacity
|
|
|
Width
|
834 mm
|
|
Length
|
2071 mm
|
|
Height
|
1315 - 1398 mm
|
|
Fuel Capacity
|
17.2 l
|
|
Saddle Height
|
835 mm
|
|
Kerb Weight
|
206 kg
|
| |
|
| Electricals |
|
|
Tail Light
|
LED
|
|
Turn Signal Lamp
|
LED
|
|
LED Tail Lights
|
Yes
|
|
Low Battery Indicator
|
Yes
|
|
Pilot Lamps
|
Yes
|
| |
|
| Tyres and Brakes |
|
|

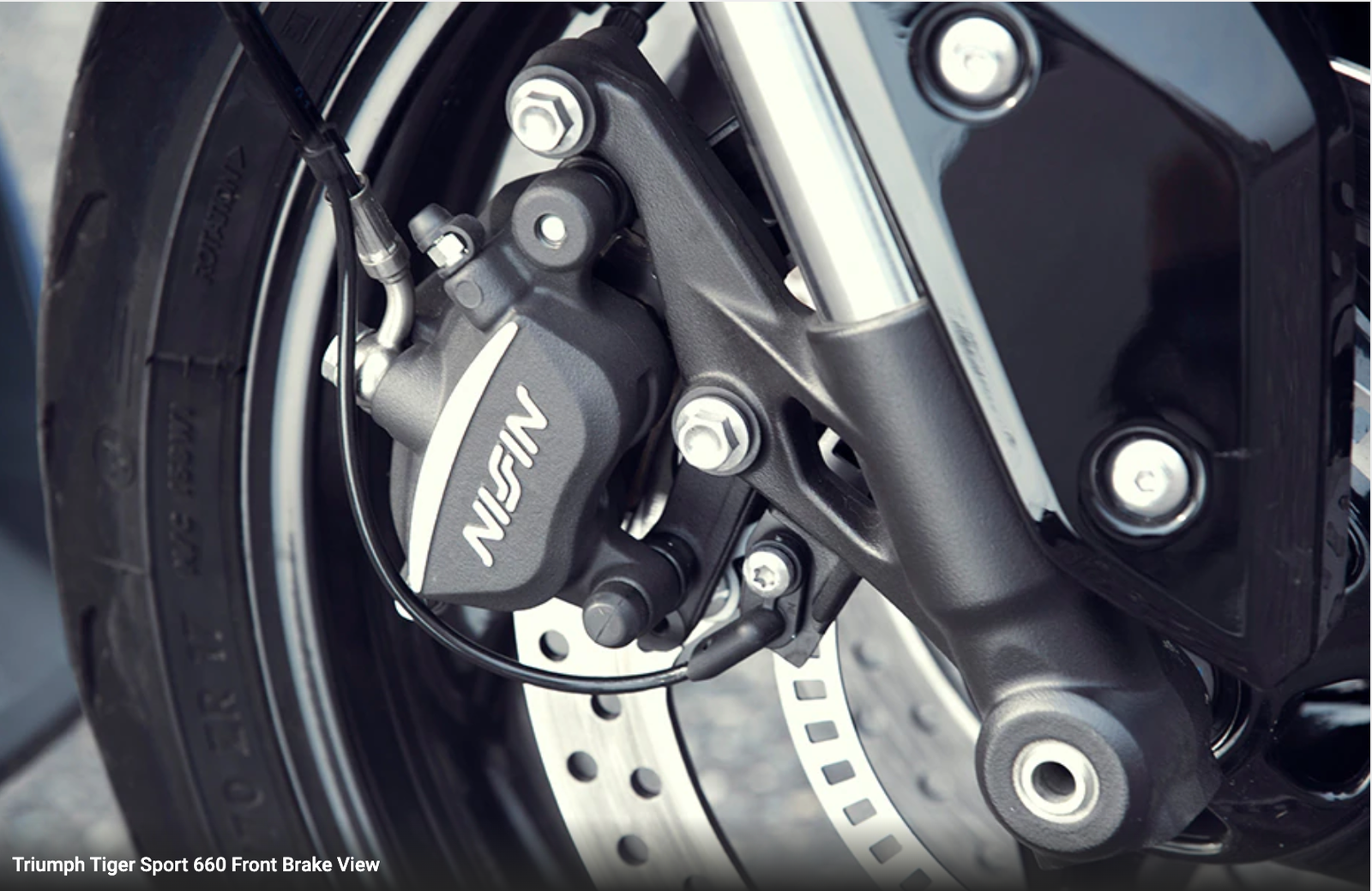

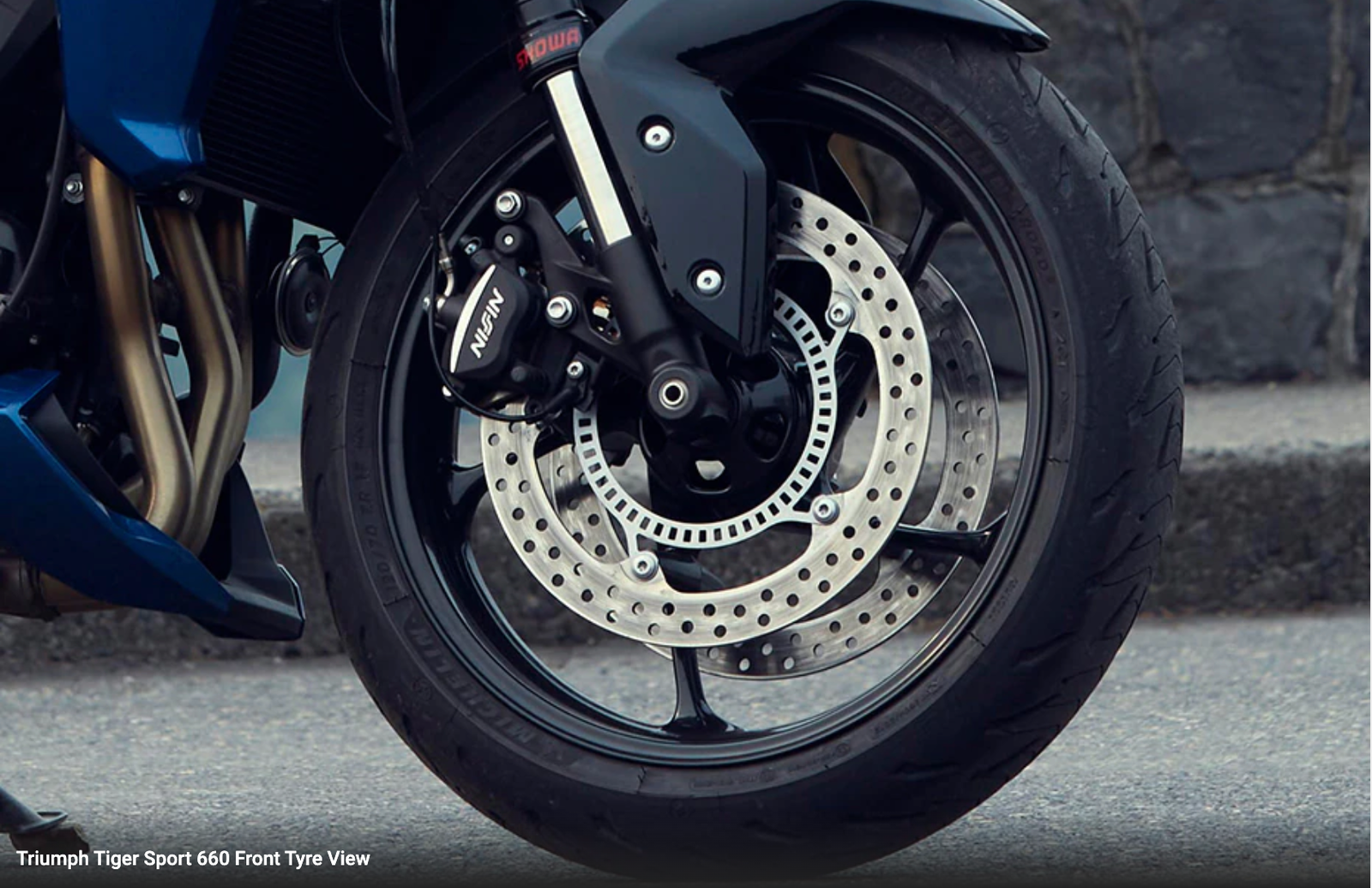

Front Brake Diameter
|
310 mm
|
|

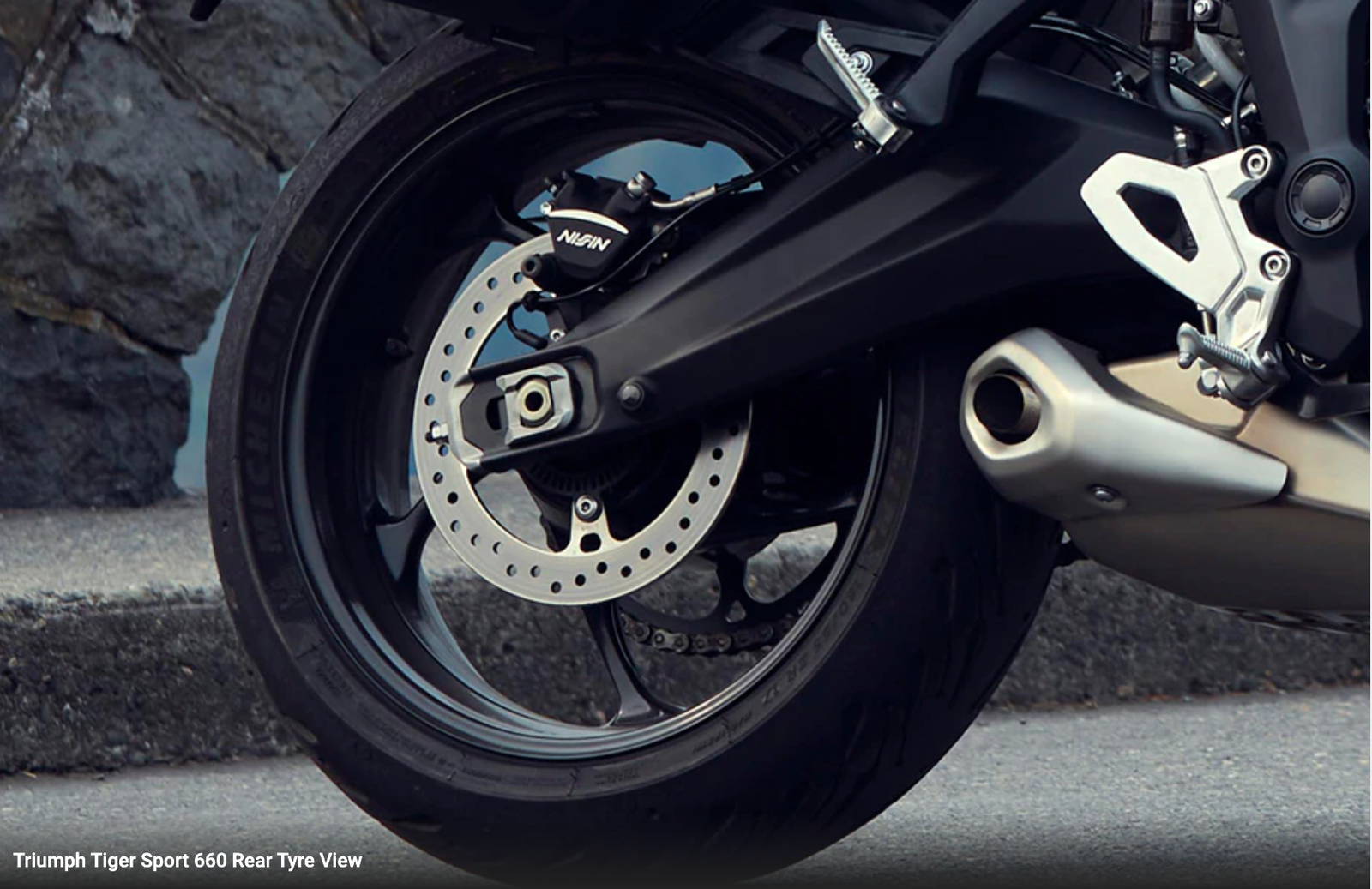

Rear Brake Diameter
|
255 mm
|
Motor & Battery
|
|
|
Peak Power
|
81 PS @ 10250 rpm
|
|
Drive Type
|
Chain Drive
|
|
Transmission
|
Manual
|
Underpinnings
|
|
|
Suspension Front
|
Showa 41mm upside down separate function cartridge forks, 150mm wheel travel
|
|
Suspension Rear
|
Showa monoshock RSU, with remote hydraulic preload adjustment, 150mm wheel travel
|
|
Brakes Front
|
Double Disc
|
|
Brakes Rear
|
Disc
|
|
ABS
|
Dual Channel
|
|
Tyre Size
|
Front :-120//70-17 Rear :-180/70-17
|
|
Wheel Size
|
Front :-431.8 mm,Rear :-431.8 mm
|
|
Wheels Type
|
Alloy
|
|
Frame
|
Tubular steel perimeter frame
|
|
Tubeless Tyre
|
Tubeless
|
| |
|
