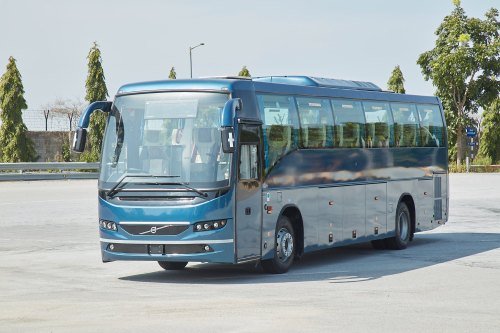

Volvo 9400 B8R

Last updated on Jul 10, 2022 in Truck & Commercial Vehicle

Powered by the best-in-class; made-in-India D8K engine, the B8R range comprises 12 and 13.5m coaches. The 12m bus has been the flagbearer for high-quality public transport for many years now. The latest offering, the 13.5m coach is the first bus of this length to be launched in the 4x2 configuration in India. Due to its generous space and benchmark design, the 13.5m coach offers up to 20% passenger capacity. Luggage space has also been enhanced by almost 30%.

The safer choice

The Volvo 9400 B8R is a true bestseller and has proven itself over millions and millions of productive kilometers. Offering several configurations, power ratings, and transmissions, it can become just the bus or coach you need. With a solid feature list, further refined by Volvo’s latest technology, we offer a new level of efficiency and safety that will reinforce your successful operation.

Dimensions and weights
Model	12M	13.5M
Overall length	12000	13500
Overall width	2600	2600
Overall height	3600	3600
Permitted GVW	18,000 kg	18,000kg
Powertrain
Emission standard	BS VI OBD I
Engine	Volvo D8K, 6-cylinder, in-line diesel engine with common rail injection
Max.Torque	1200 Nm @ 1200 - 1600 rpm
Transmission	Synchromesh manual gearbox with long service life and lower maintenance costs, thereby improving driver comfort and passenger comfort

Fuel tanks
Diesel (L)	450lt (350+150)	600lt (300+300)
AdBlue® (L)	50	50
Body Specifications
Body type	Galvanized tubular structure with anti-corrosive paint for rust prevention
Service door	Standard : 01 at front, 710 mm width (Electro pneumatic)
Interior flooring	Boiling water proof ply + FR grade
Rear glass on panel	Single, toughened
Outside Rear view mirrors	Electrically adjustable

Seats
Model	12M	13.5M
Type	Reclining without calf-support - std	Reclining without calf-support std
Nos	43 seats w/o c/s + 1 Driver +1 Co - Driver	47 seats w/o c/s + 1 Driver +1 Co - Driver
Model	V05	V05
Luggage space
Model	12M Seater	13.5M Seater	13.5M Sleeper
Overall space	10 m3	11.5 m3	6.5 m3
Axles,suspension and steering
Front axle	Rigid,steerable and non- driven
Rear axle	Full floating,non - steerable and driven
Suspension	Electronically Controlled Suspension (ECS) System provides extremely precise regulation of the ride height.
Suspension	Telescopic type hydraulic, front & rear axle
Power steering	Integral hydraulic power assisted steering
Tyres	295/ 80 R 22.5 18 PR,Tubeless Radials
Rims	Steel or aluminium rims available
Brakes
Brake systems	Electronic Vehicle Stability Control (EVSC)
	Volvo disc brakes (EBS)
	Electronic Stability Program (ESP)
	Parking brake(Air operated acting on rear wheels)
	Anti-lock Braking System (ABS)
